ARCH 2615-5615 Building Technology II: Structural Elements
Spring 2022
Jonathan Ochshorn
Assignment 2 solutions
Refer to Assignment 2 for geometry and other parameters.
For the framing plan and section shown below, assume the following:
- Office occupancy with L = 50 psf. Consider live load reduction to determine the reduced live load.
- Dead load (for floors and roof) = 23 psf.
- Snow load = 55 psf.
- Construction/maintenance roof live load, Lr = 30 psf.
- Use Douglas Fir-Larch No. 2 for all beams, girders, and columns.
- Design beams and girders with an allowable live load deflection of L/360 and an allowable total load deflection of L/240.
A. Using the online calculators for column governing loads, wood beams, and wood columns, design the following elements:

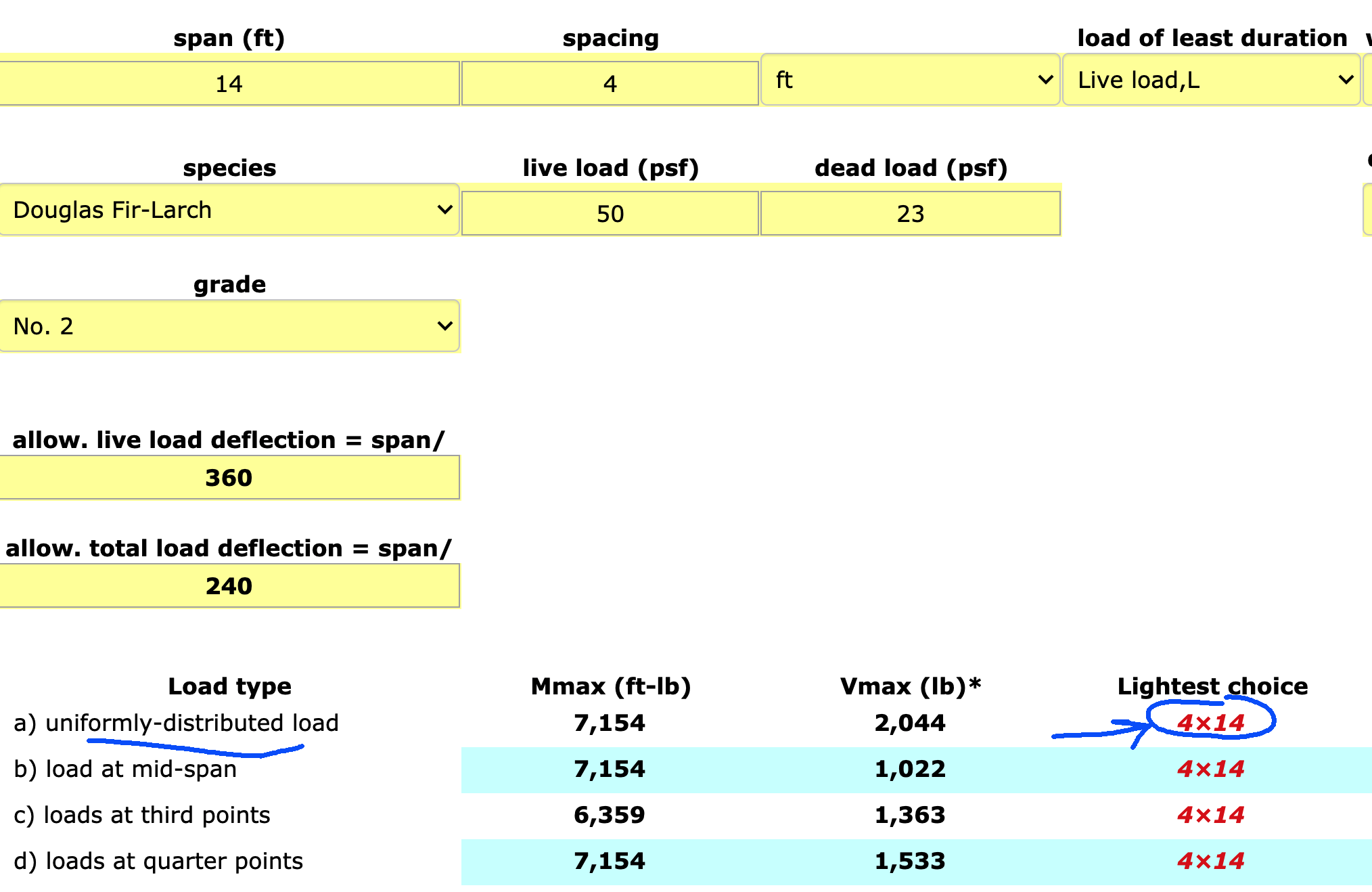

Typical beam.

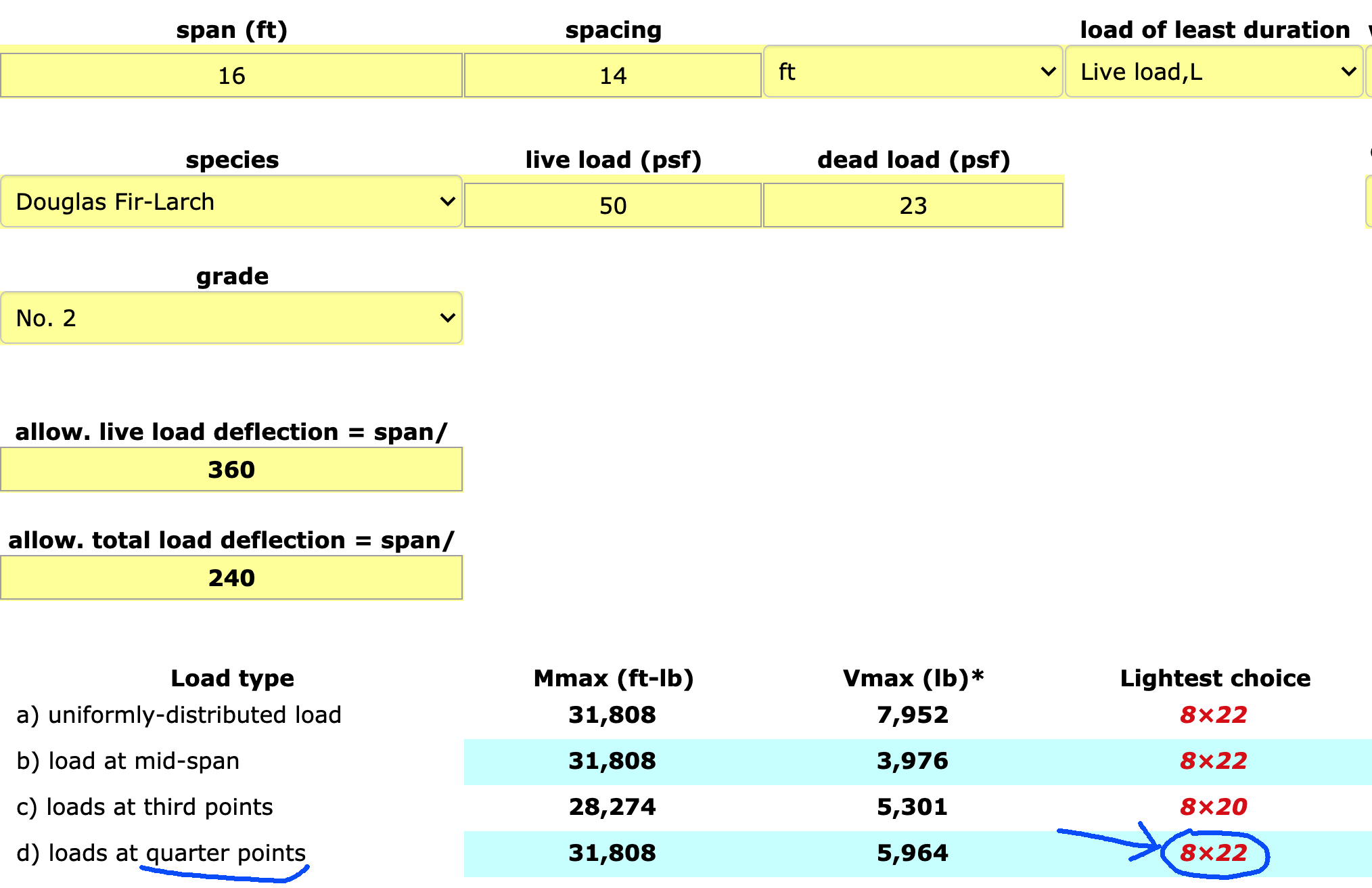

Typical girder.

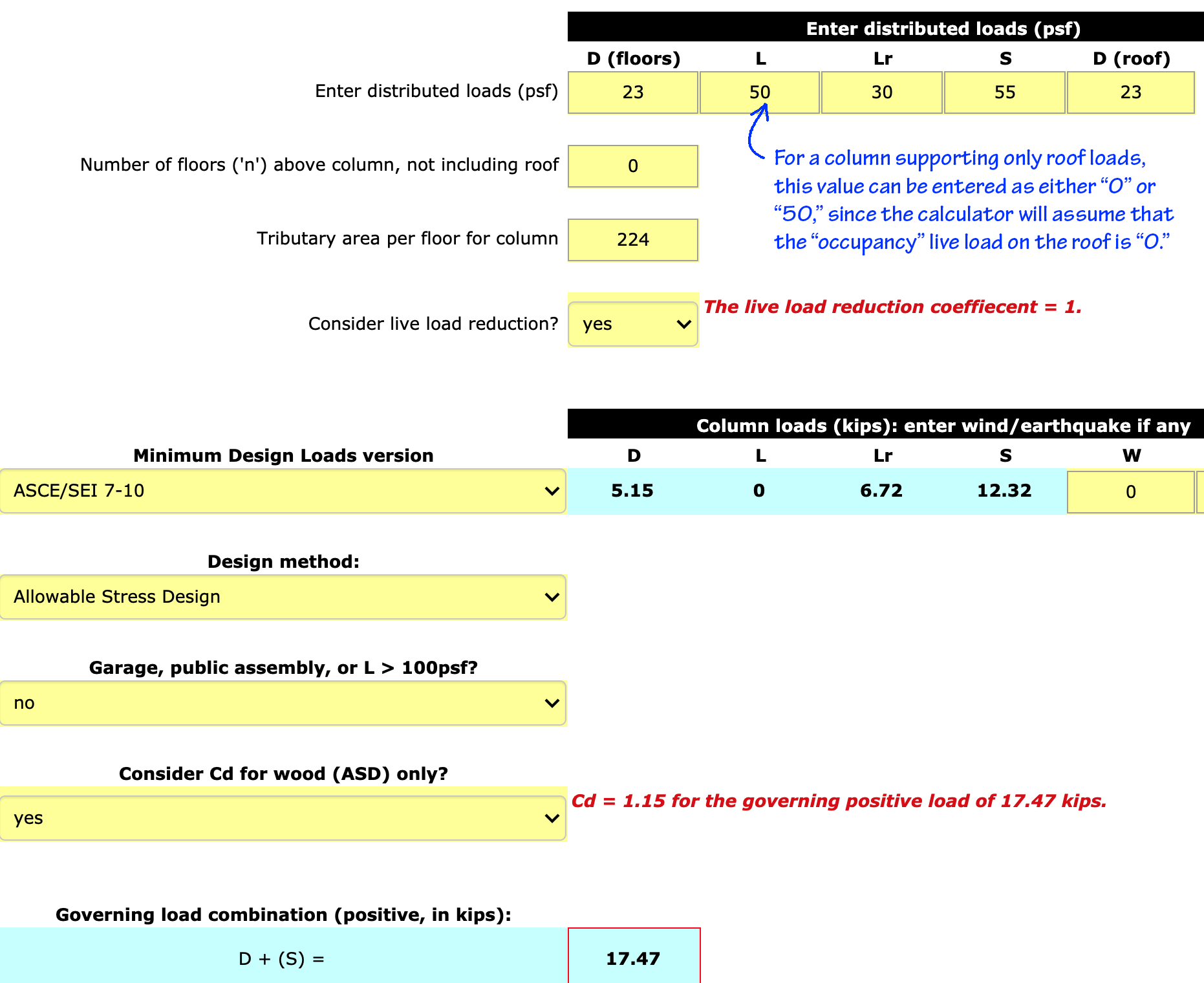

Columns (governing loads, 3rd-floor column).

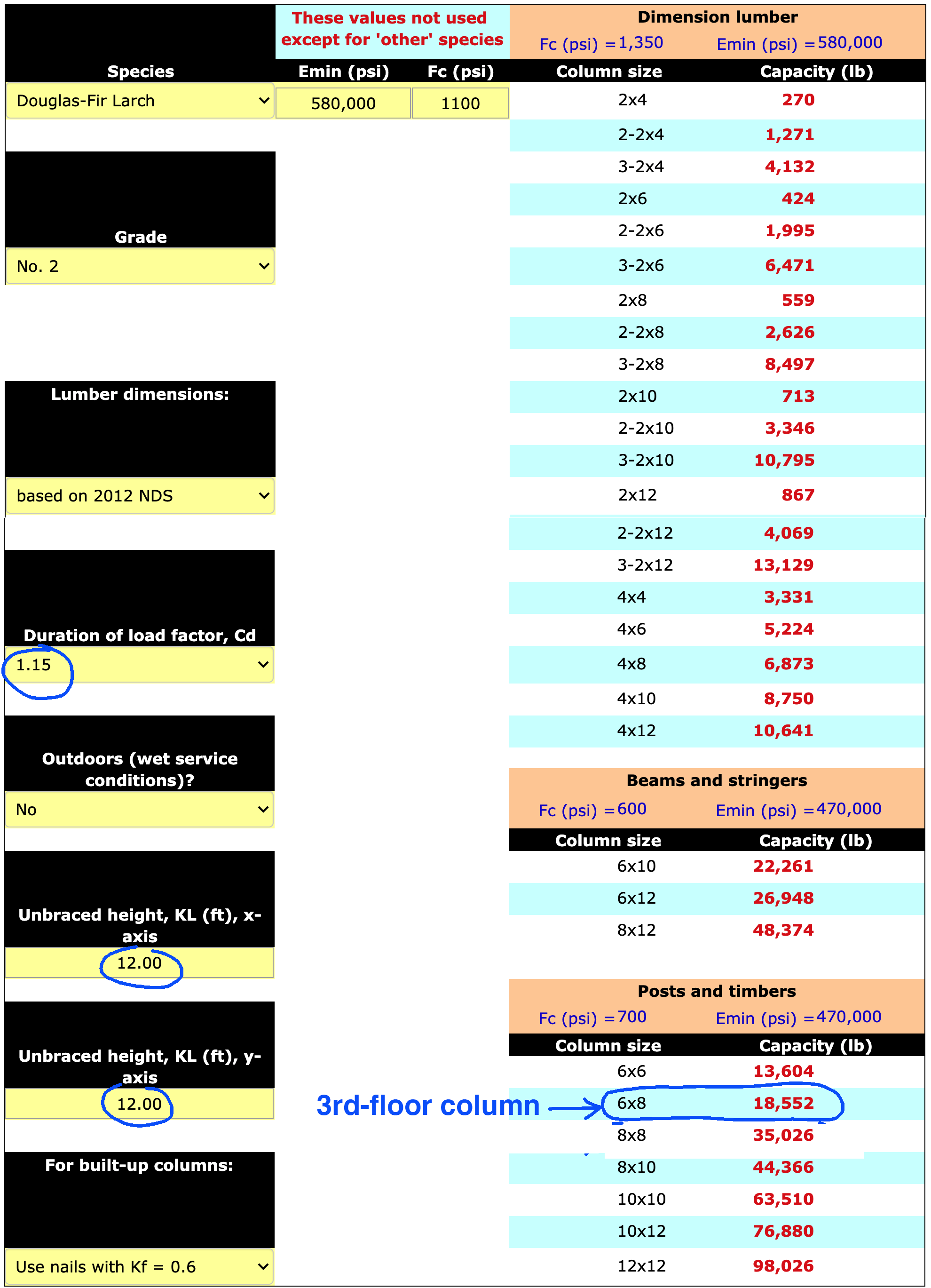

Columns (design of 3rd-floor column).

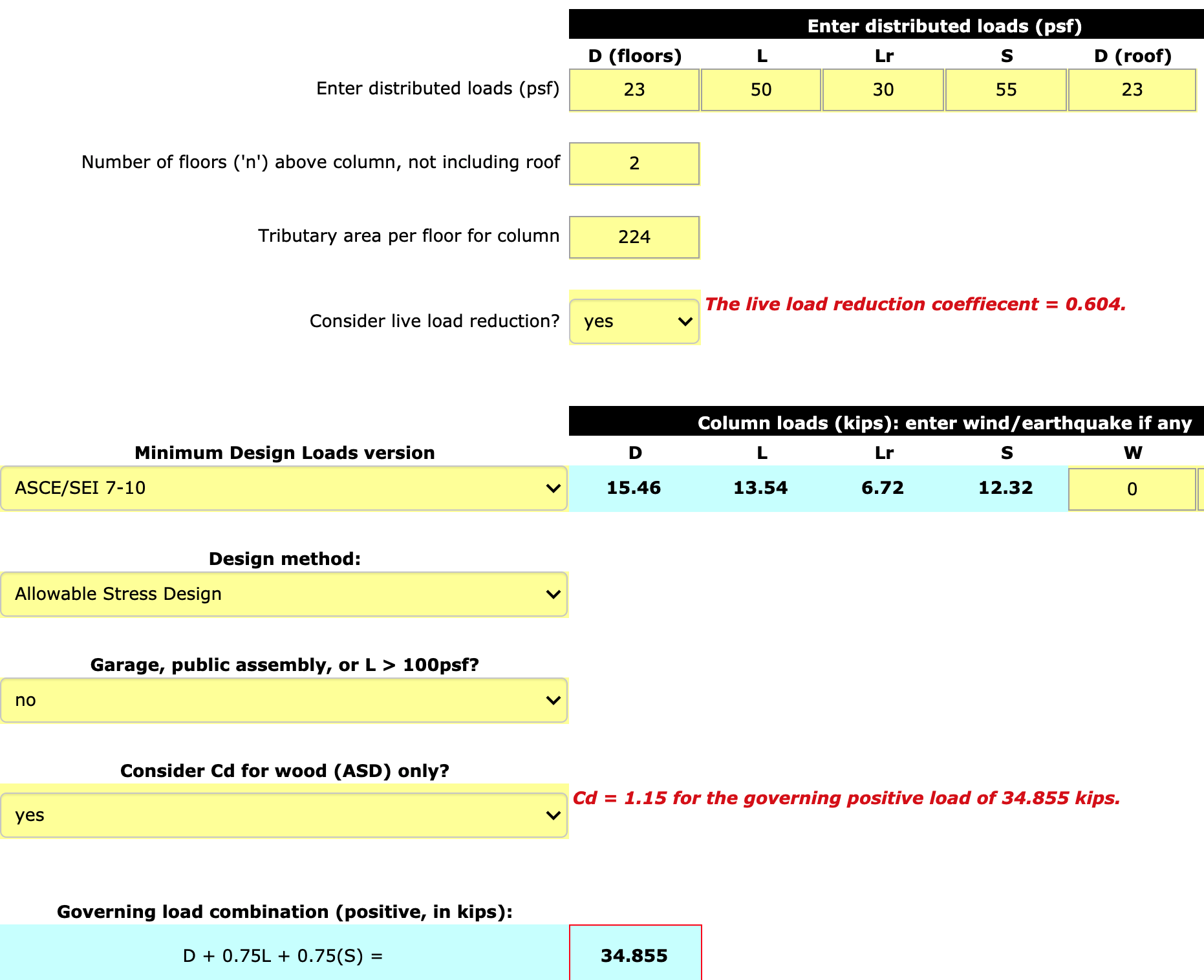

Columns (governing loads, 1st-floor column).

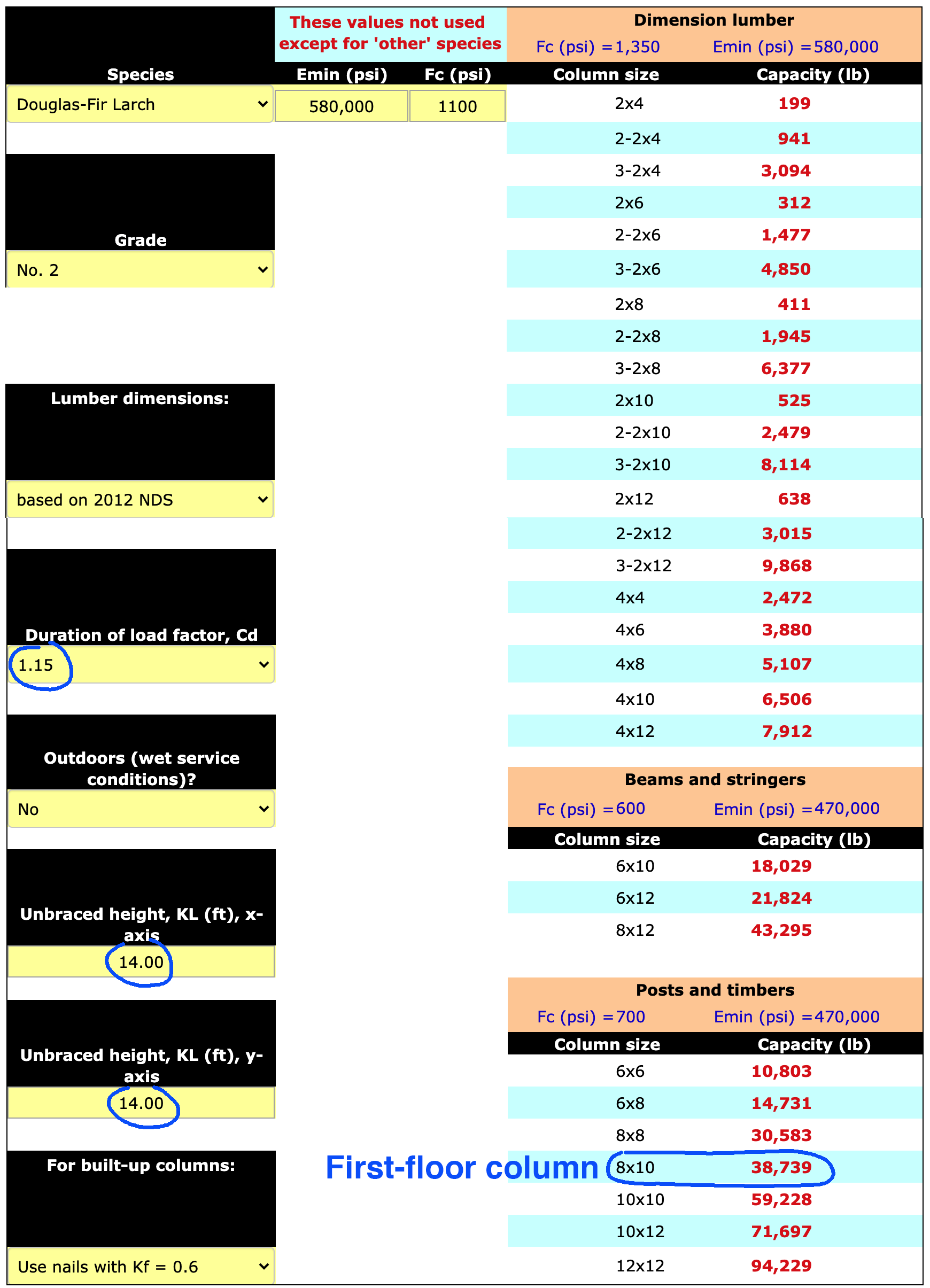

Columns (design of 1st-floor column).
B. The beam can be designed without the calculator (pdf).
Copyright
2021 J. Ochshorn. All rights reserved. First posted: 4 March 2021 | last updated: 18 February 2022
