Rainwater harvesting (Design-build), Ithaca, NY
Date: 2006
<--previous | 1 | 2 | 1 | 3 | 4 | 5 | next-->
Step-by-step construction method:

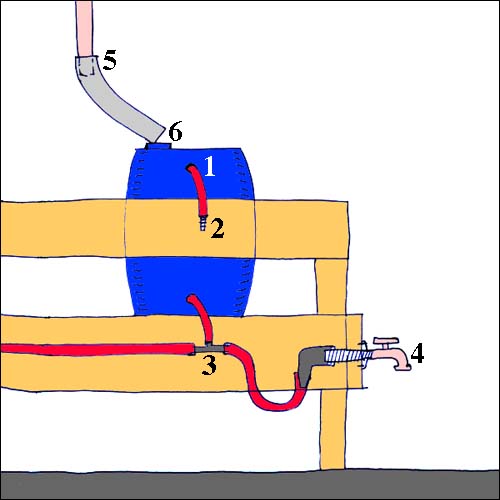

3. Assembling the barrels with fittings, faucets, and hoses was the next step. The diagram below shows a typical barrel with its connections to the downspout and fittings for hoses. Details of each connection can be found on the next page.
Typical elements for rainwater harvesting: (1) rain barrel; (2) overflow hose; (3) T-fitting to connect all barrels in series; (4) faucet for filling buckets or hose connection; (5) connection of flexible pipe to downspout; and (6) screened opening in barrel.
