Critique of Milstein Hall: Sustainability

Jonathan Ochshorn


Sustainability contents: 1. introduction | 2. sustainable sites | 3. water efficiency | 4. energy & atmosphere | 5. materials & resources | 6. IEQ | 7. innovation | 8. Cornell's vision | 9. conclusions

8. Cornell's Sustainable Vision for Milstein Hall

Cornell lists the "sustainable design initiatives" it has taken in the design and construction of Milstein Hall1 and summarizes these initiatives with the image reproduced in Figure 1. These initiatives are grouped into eight categories, with my comments following each specious claim.

Milstein Hall's sustainable features

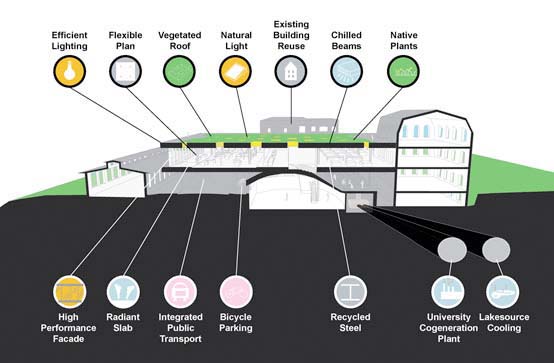

Figure 1. Milstein Hall's sustainable design initiatives (from Cornell's Milstein Hall web site).


1. Reduce energy usage for building heating and cooling: Utilize cogeneration produced steam for building heating and lake-chilled water for building cooling. Incorporate energy efficient chilled beams for cooling. Employ insulated walls and glazing to reduce building air loss. Employ a vegetated roof to reduce solar heat gain and to reduce building air loss.

Comments: Cornell's cogeneration and lake-source cooling initiatives, however commendable, are not design initiatives of Milstein Hall. Chilled beams are relatively efficient, but hardly radical. Insulated walls and glazing to reduce building air loss? This both makes no sense and is inaccurate. It makes no sense because "air loss" (infiltration) is reduced by designing and installing a continuous air barrier system for the building, not by providing "insulation." Milstein Hall actually performs extremely poorly on both counts (air barriers and insulation). First, the building has a relatively ineffective air barrier system. Especially at seismic building separation joints along the entire perimeter between Milstein and Rand/Sibley Halls, not only has air barrier continuity not been established, but insulation has not been installed with seismic joints detailed to accommodate movement. Second, rather than being a role model for building insulation, Milstein Hall is actually a case-study in inefficient thermal form and thermal bridging.

Purely from an energy-efficiency and insulation standpoint, the most logical geometry for a building is one that minimizes surface area. Milstein Hall does exactly the opposite, by creating a large, extended floor plate that is then elevated above the ground, exposing not only its roof but also its underside to the exterior. Below-grade spaces also extend well beyond the boundaries of the upper floor plates, so that they too are needlessly exposed to the exterior. The entire wall area of the building, excluding below-grade spaces, is glazed. Of course, insulated glazing is better than uninsulated glazing, but this misses the point: all glazing, unless designed as part of a passive-solar system, is less thermally efficient than an insulated wall. Milstein's undifferentiated glazing (all vertical surfaces, whether facing north, south, east, or west, are glazed) has not been designed in this way and so only contributes to gratuitous heat gain or heat loss. The contribution of the glass to daylighting is certainly real, but in no way compensates for the increased energy usage for heating and cooling. Given an already tenuous thermal-design strategy consisting primarily of undifferentiated glazing for all four facades, the building is then detailed with substantial thermal bridges, which create additional express pathways for heat loss. For example, the unusually large steel columns that penetrate the studio floor from the exterior act as conduits for both heat gain during the cooling season and heat loss during the heating season, causing an increase in heat loss through the floors of approximately 10%.2 Stone veneer panels are fastened to the structure with horizontal steel angles that, like the steel columns, also penetrate the insulation layer, thereby greatly reducing its effectiveness (see Figure 2).

Milstein Hall's thermal bridges at shelf angles

Figure 2. Thermal bridging at stone-support angles (Photo by William Staffeld, Cornell University).

Employing a vegetated roof does not reduce solar heat gain nor does it reduce building air loss, as claimed by Cornell, if such a system is compared to a well-detailed but otherwise ordinary insulated roof with a reflective surface. As Joseph Lstiburek astutely points out: "Grass and dirt are not energy efficient. Work with me here. Which saves more energy—2 inches of dirt or 2 inches of insulation? Which saves more energy—grass or a white colored membrane? Which is more expensive and does not save energy—grass and dirt or insulation and a white colored membrane?"3


2. Reduce energy usage for transportation: Incorporate existing public transportation network. Accommodate pedestrians access and bicycle parking. Specify locally manufactured materials.

Comments: These claims mirror some of the LEED credits in "sustainable sites" and "materials & resources." Milstein Hall's location next to existing bus lines made it impossible not to tie into a pubic transport network—this "initiative" has nothing to do with the design of Milstein Hall. As described above, Milstein Hall—using the minimum bike storage standards of the LEED guidelines instead of actually responding to the needs of bike users—does an extremely poor job of accommodating them. As to the "sustainability initiative" accomplished by accommodating "pedestrian access," one is at a loss to imagine what this could possibly mean. Is it that the building has a door at ground level, thereby permitting pedestrians to enter? Or that Cornell's existing system of walks and paths is not separated from the entrance to Milstein Hall by some sort of moat or electronic barrier?


3. Reduce energy use for building lighting: Employ skylights and glazing for natural day-lighting. Specify energy efficient light fixtures.

Comments: Daylighting, in the form of continuous perimeter glazing and skylights, can only be considered a sustainable (i.e., energy-saving) design feature if it reduces the need for electric lighting. On Milstein Hall's large studio floor, electric lighting is never turned off, so that no energy saving can be attributed to its daylighting sources. In fact, both the day and night lighting conditions have been criticized by users of the space.4 Energy-efficient light fixtures are, of course, better than, say, incandescent fixtures, but using energy-efficient fixtures inefficiently—as is being done in Milstein Hall—should not be characterized as "sustainable."


4. Reduce energy use for material production: Employ recycled steel and concrete aggregate. Employ recycled finish materials where appropriate. Design building finishes to reduce building material use.

Comments: As described elsewhere, Milstein Hall uses steel not just inefficiently, but extraordinarily inefficiently, with more steel per square foot of floor area than in some 100-story buildings. That this steel has recycled content does not make such an incredibly inefficient design sustainable, especially when the basis of this recycled steel—junked cars—is the disposable culture of planned obsolescence. Milstein's concrete recycles fly ash as part of its cementitious content; whether recycled "concrete aggregate" is also used is unlikely, but possible. The claim that Milstein Hall's finishes reduce material use is puzzling, since one can always imagine a design that has either more, or less, material content in its finished surfaces. Milstein Hall, for example, has concrete floors, and does not have carpet or tile on these floor surfaces. The concrete surface seems perfectly adequate for its intended use. If not using an additional material that is not necessary is counted as "sustainable," then the bar for sustainable design has been set pretty low.


5. Reduce material use and landfill waste: Reuse of existing buildings. Specify contractor sorting and recycling of demolition material. Reduce construction material packaging. Design a flexible building to increase long-term use and adaptability.

Comments: Rather than renovating Sibley and Rand Halls, and providing a small amount of added program space to accommodate increased program needs,5 the design for Milstein Hall created 50,000 square feet of new space, very little of which is actually needed. This has become clear now that the new building is occupied: virtually the entire 2nd and 3rd floors of E. Sibley Hall (excluding about 33% of the 2nd floor, still being used for faculty offices and other program needs) along with the large space and mezzanine under Sibley's dome—in other words, the entire space formerly housing the Fine Arts Library—is currently vacant. This 20,000 sq.ft. of potentially useful space, suitable for studios or offices (in fact, these now-vacant spaces in E. Sibley Hall formerly housed much of the architecture studios before the Fine Arts Library expanded into those spaces during the 1970s), is more or less the same size as the 25,500 sq.ft. studio floor in Milstein Hall. All of this raises the question of exactly what urgent programming imperatives caused the University to spend in excess of $50 million—much of it improperly taken from a departmental endowment meant for program support rather than construction—for a major new building when a more modest allocation of funds to renovate (not just to "reuse") existing buildings and perhaps add a small addition to those buildings would have accomplished more at less expense. In other words, the claim that Milstein Hall somehow allowed for the "reuse" of Rand and Sibley Halls is disingenuous: Sibley and Rand Halls remain in terrible shape—they both are completely inadequate in terms of energy and IEQ—because no funds from the Milstein Hall project were permitted to be used to improve them, other than what was minimally necessary to comply with building code provisions triggered by Milstein Hall's construction.

It is also sometimes claimed that Milstein Hall's design "saved" Rand Hall from demolition.6 This, too, is spurious. Rand Hall was slated for demolition when Milstein Hall was the subject of a design competition in 2000. In the same way that the University made the (bad) decision to demolish Rand in 2000, it then reversed the decision at a later date. What "saved" Rand Hall was not the design of Milstein Hall itself, but rather a change in the initial plan to demolish the building. If the University had not unilaterally made the bad decision to demolish Rand Hall in 2000, the building would never have needed to be "saved." In any case, it was the University's decision, not the design of Milstein Hall, which "saved" the building.

It is claimed by Cornell that Milstein is a flexible building. That Milstein Hall is the opposite of a flexible building will be discussed elsewhere.


6. Reduce storm water pollution: Employ vegetated roof or storm water retention system to filter storm water. Incorporate quantity and quality storm water measures. Specify native plants to eliminate pesticide usage.

Comments: All three of these claims are at least partly incorrect. First, Milstein Hall's vegetated roof may or may not be useful in filtering storm water. Some studies have measured increased amounts of nitrogen and phosphorus in green-roof runoff compared with conventional roof runoff during heavy rainfall.7 Second, Milstein Hall meets neither the quantity nor quality stormwater standards for LEED credit. Instead, virtually all storm water falling on the vegetated roof during heavy rainfall is directed through the building and into the storm sewer system, rather than being controlled or improved on site. Third, Milstein Hall's green roof has no native plants. The sedums planted on the roof are adapted plants, not native species.8 Using adapted, non-invasive, plants is not bad. It just isn't accurate to call them native. It is also more than a bit hypocritical of Cornell to boast about eliminating pesticide usage on this small vegetated roof, while simultaneously employing pesticides (the broadleaf herbicide SpeedZone9) over large parts of its grounds, including the arts quad adjacent to Milstein Hall (Figure 3).

pesticide application sign on Cornell's arts quad

Figure 3. Application of the herbicide SpeedZone on the Cornell Arts Quad (Image screen-captured from video by J. Ochshorn, May, 2011).


7. Reduce water usage: Specify native plants to reduce irrigation water usage. Provide a temporary irrigation system for the vegetated roof. Specify low-flow plumbing fixtures to reduce potable water usage.

Comments: This is simply reaching for the low-hanging fruit. Not using irrigation in Ithaca, NY is hardly a sustainable accomplishment, as it rains here quite a bit.


8. Increase environmental comfort of building occupants: Employ radiant slab system and chilled beams. Employ day-lighting. Specify low volatile organic compounds (VOC)-emitting material. Employ outside air system. Provide visual and direct connections to natural areas.

Comments: There is nothing radically sustainable about chilled beams and radiant slabs. They provide no individual comfort controls, so that individual variations in the experience of comfort cannot be accommodated. Daylighting, entering through wall-to-ceiling glazing and skylights, has already been described as unnecessary (since the electric lights are always on) and often counter-productive (causing both glare and unwanted illumination). Milstein Hall does not consistently eliminate products with high VOC content. While it gains a LEED point for using a small amount of "Green Label Plus" carpet in the auditorium, it still uses composite wood products indoors that do not satisfy the LEED criteria for indoor air quality. Milstein Hall provides outside air, as do all buildings, both old and new. This is a requirement of building and mechanical codes, not a sustainable design initiative.

As to Milstein Hall's alleged visual and direct connections to natural areas, one simply needs to walk through the 2nd-floor studio to form a more accurate impression: to the east is a parking lot, admittedly with some trees visible on the edge of Fall Creek gorge; to the north is the asphalt roof of the Foundry, which blocks any view of Fall Creek; to the west is Rand Hall; and to the south is E. Sibley Hall, along with a view towards other campus buildings. The floor plate is so deep that most work stations are located far from Milstein's glazed edges, and have even less of a chance to connect with nature. There are certainly no direct connections to natural areas from Milstein Hall, which is separated from Fall Creek (the only plausible "natural area" in the vicinity) by University Avenue and the Foundry. In fact, what Milstein Hall did was to eliminate numerous windows and outdoor views from Rand and Sibley Halls.
