Find reactions for 3-hinged arch

Jonathan Ochshorn


Directions: Enter values for loads and their horizontal positions along the arch, using any consistent units. To eliminate a load, set its magnitude to zero. Refer to the diagram for variable names. For example, use ft for distances; use either lb/ft and lb units, or kips/ft and kip units for loads; the reactions will be in either lb or kips, depending on your choice. Loads are assumed to act in a downward direction, with vertical reactions acting in an upward direction and horizontal reactions acting towards the arch. Upward-acting loads should be entered as negative numbers; a negative vertical reaction indicates that its direction is actually downward-acting rather than upward-acting; and negative horizontal reactions indicate that their direction is away from the arch.

Press "update" button.

More detailed explanations and examples can be found in my text.

3-hinge arch dimensions and load magnitudes

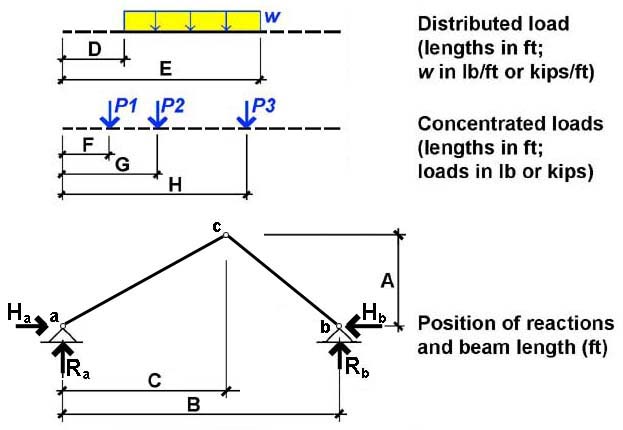

Fig. 1. Three-hinge arch geometry (lengths) and magnitude of loads
