Boathouse repair

Date: 2006

Design notes:

Consulting and construction details for boathouse repair, based on previous design but incorporating improvements in the areas of environmental control and structural stability.

Click on thumbnails for larger images:

2nd-floor plan

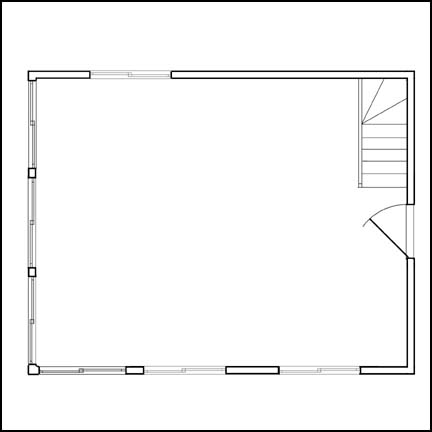

Second-floor plan

roof plan

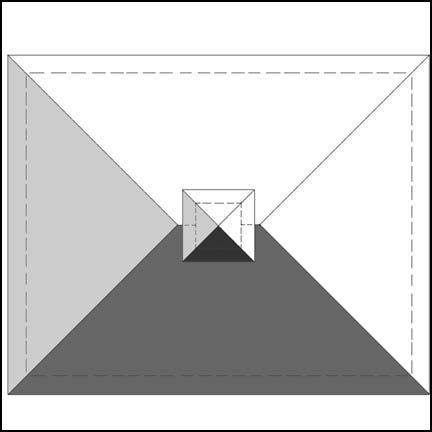

Roof plan

east elevation

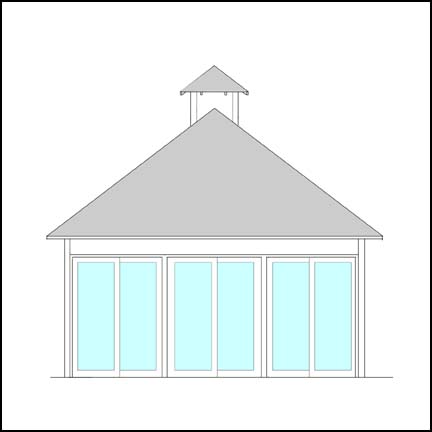

East elevation

north elevation

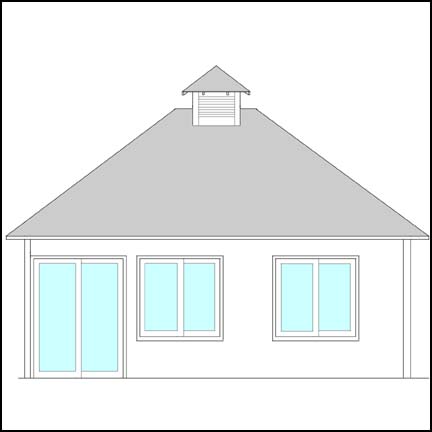

North elevation

2nd-floor plan

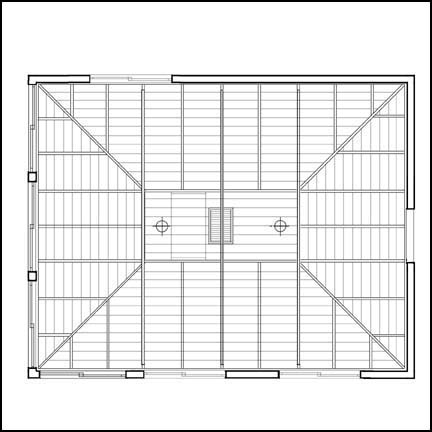

Reflected ceiling plan

roof plan

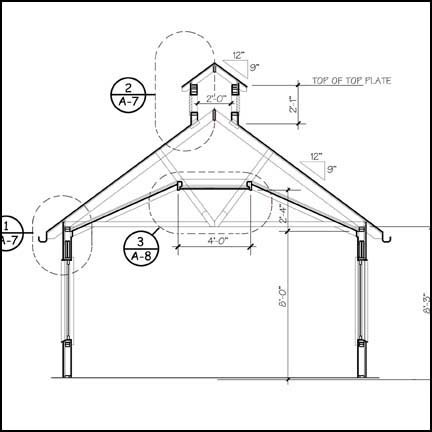

Section

east elevation

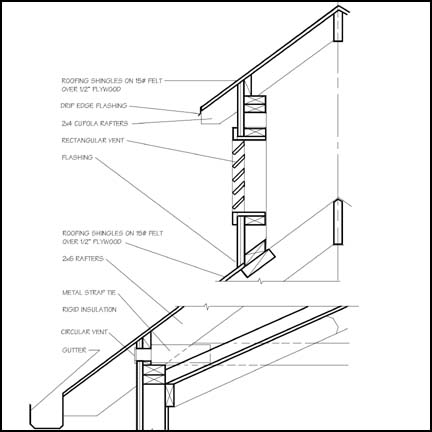

Detail at eave and cupola

north elevation

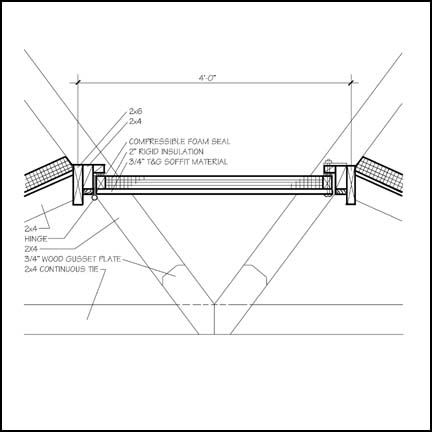

Detail at access panel

2nd-floor plan

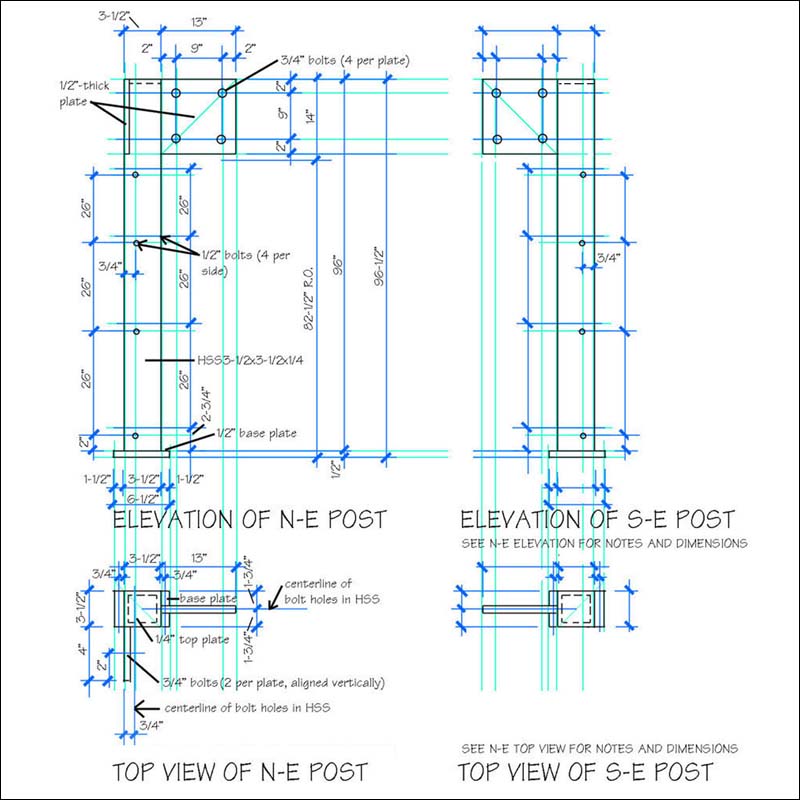

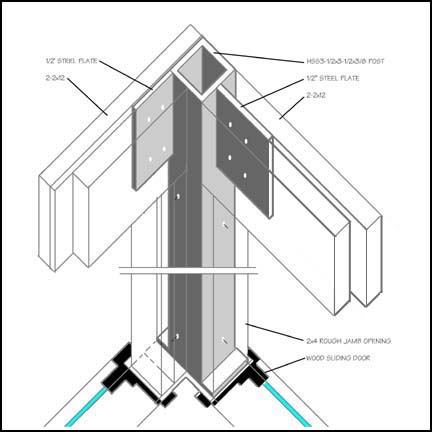

Corner post detail (1)

roof plan

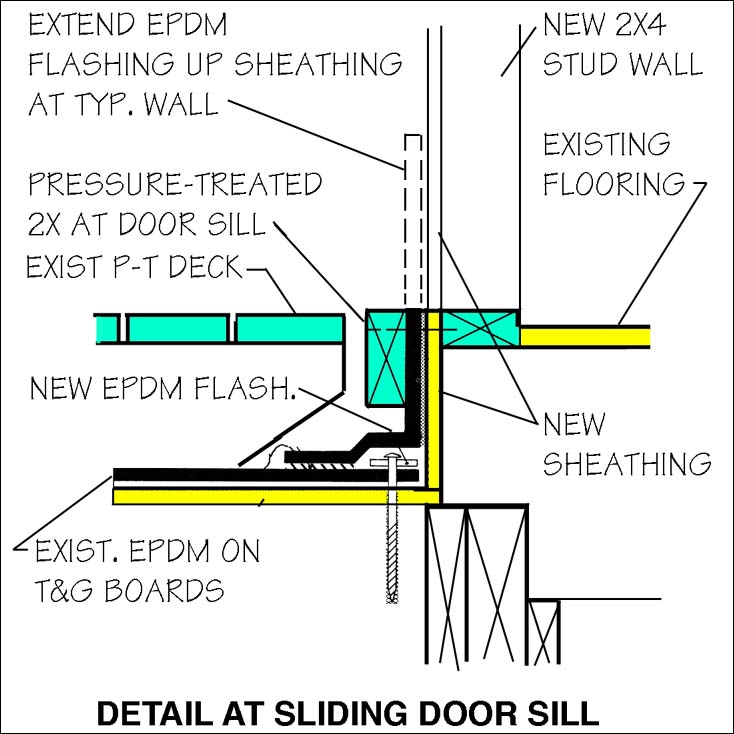

Detail at sliding door

east elevation

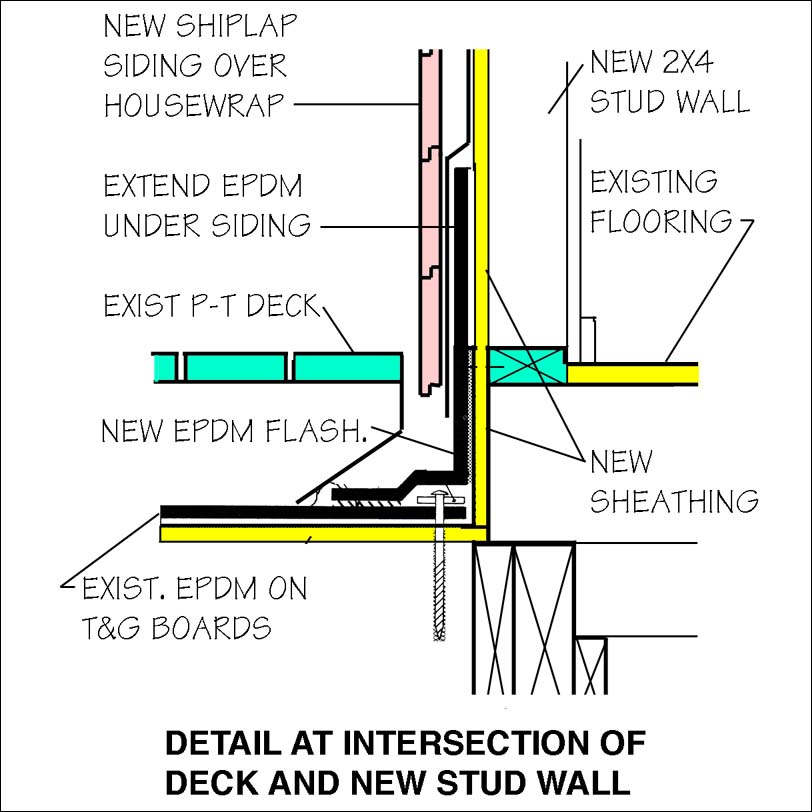

Detail at deck membrane

north elevation

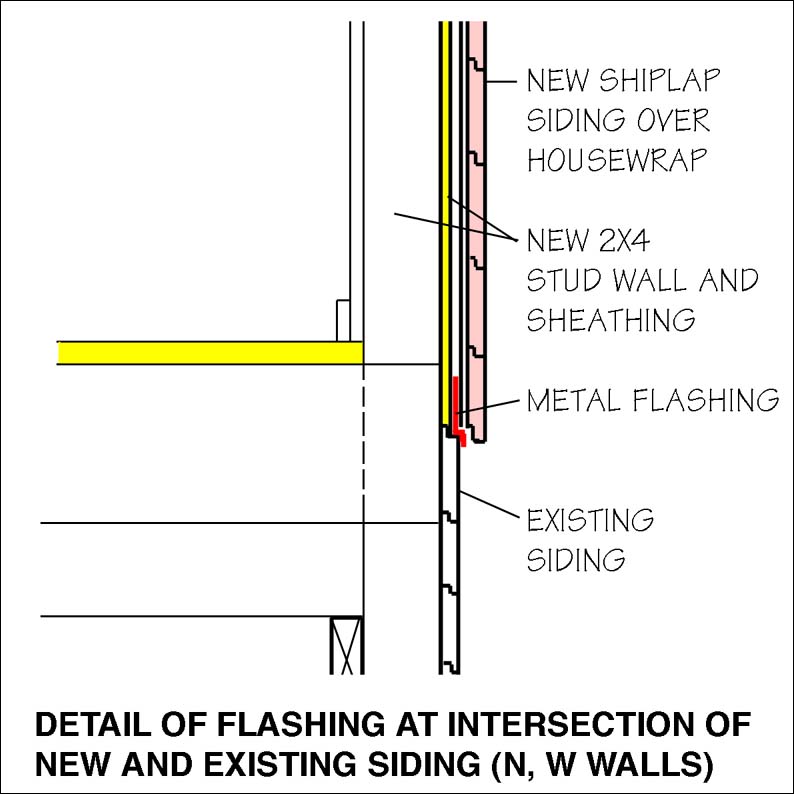

Flashing at new and existing wall

east elevation
Corner post detail (2)

north elevation
Corner post detail (3)



2nd-floor plan

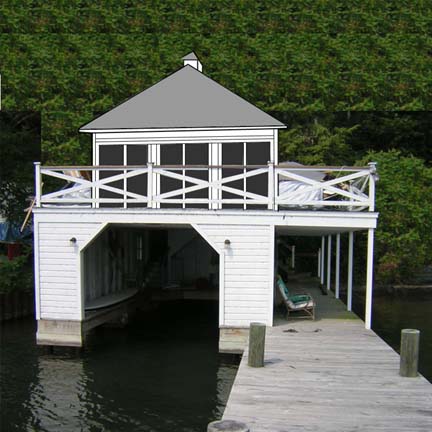

Collage showing exterior

roof plan

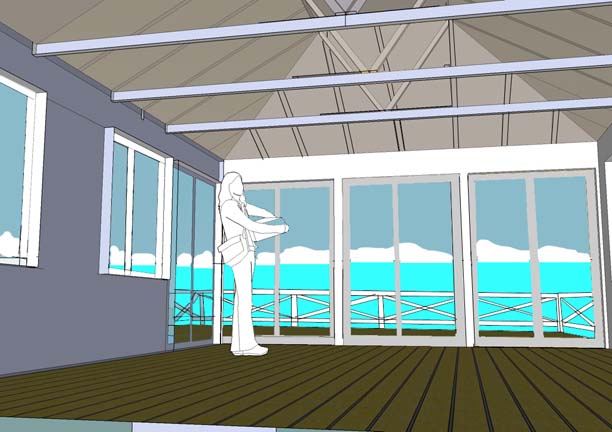

Sketch showing interior
